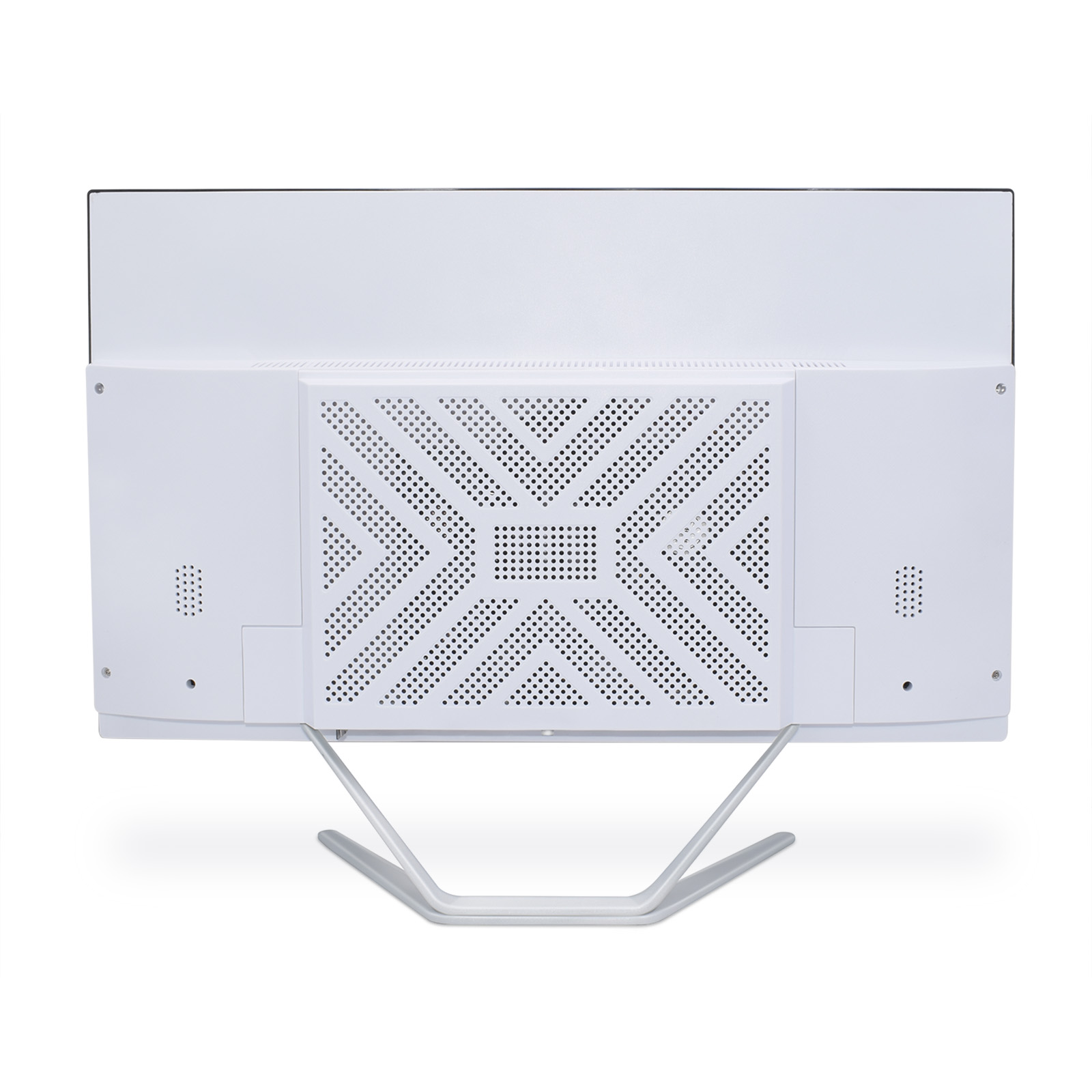

21.5 23.8 All In One PC Core i7 i5 i3 Aio Barebone Hardware Desktop Computer with Monitor
Product Description
Details Images
|
SYSTEM FEATURES (Any questions or customization? )
|
||
|
Operating system
|
Support Win 7/10/Linux, Preload Win 10 Pro
|
|
|
Processor
|
Core i5-7300HQ(6M Cache, 4 Cores 4 Threads, Base Frequency 2.50 GHz Turbo Frequency 3.50 GHz)
|
|
|
Processor family
|
10th Generation Core™ i7 processor
|
|
|
MEMORY
|
||
|
Memory
|
2G/4G/8G DDR3L SDRAM
|
|
|
Memory slots
|
1 x SODIMM slot
|
|
|
STORAGE
|
||
|
Internal storage
|
1 x MSATA SSD, 32G/64G/128G/256G/512G/1TB/2TB optional
|
|
|
Hard drive (2nd)
|
1 x SATA, 500G/1TB/2TB/4TB/5TB optional
|
|
|
Storage type
|
SSD; HDD
|
|
|
Optical drive
|
Optional (For QTY order only)
|
|
|
DISPLAY AND GRAPHICS
|
||
|
Graphics
|
UHD Graphics
|
|
|
Screen
|
23.8 inch
|
|
|
Resolution
|
1920*1080
|
|
|
EXPANSION FEATURES
|
||
|
I/O Port location
|
Left and bottom side
|
|
|
Ports
|
2 x Super Speed USB 3.0 Type-A 5Gbps signaling rate; 4 USB 2.0 Type-A;
1 x headphone & 1 microphone; 1 x RJ45 Giga Lan Port;1 HD & 1 VGA |
|
|
Inside expansion slots
|
1 x Half height Mini PCI-E (for WLAN)
|
|
|
MEDIA DEVICES
|
||
|
Audio features
|
Dual 3 W speakers
|
|
|
Webcam
|
3 Mega Pixel webcam with Microphone optional
|
|
|
INPUT DEVICES
|
||
|
Pointing device
|
Wireless Optical Mouse
|
|
|
Keyboard
|
USB wireless keyboard
|
|
|
COMMUNICATIONS
|
||
|
Network interface
|
Integrated 10/100/1000 GbE LAN
|
|
|
Wireless
|
Realtek 802.11a/b/g/n/ac (1×1) and BT® 4.2 combo
|
|
|
POWER AND OPERATING REQUIREMENTS
|
||
|
Power supply type
|
12V 5A Smart AC power adapter
|
|
|
Energy Efficiency Compliance
|
GS certified; CB certified, PSE certified, TUV & UL certified
|
|
|
DIMENSIONS AND WEIGHT
|
||
|
Dimensions without stand
|
21.5 inch: 49.00 x 16.8 x 29.20 cm (W x D x H)(Optional)
23.8 inch: 53.50 x 16.8 x 32.10 cm (W x D x H) |
|
|
Package dimensions
|
Color box 59.9 x 13.9 x 48.2 cm (W x D x H)
Shipping package 63 x 17 x 51 cm (W x D x H) |
|
|
Weight
|
21.5inch: NW 3.9 kg, GW 6.0kg (Optional)
23.8inch: NW 4.5 kg, GW 6.5kg |
|
|
Shipping weight
|
11.5 kg
|
|
|
Others
|
||
|
Product color
|
White / Black optional
|
|
|
WARRANTY AND SERVICES
|
1 year limited parts and on-site service, toll-free lifetime technical support online
|
|
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Product Usage
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x All in one pc
Normally we use the carton box, 5 or 10pcs per carton
1 x All in one pc
1 x Wireless mouse
1 x Power adapter(correct power plug based on buyer’s country)
1 x Warranty card &user manual
1 x Power adapter(correct power plug based on buyer’s country)
1 x Warranty card &user manual
Other accessories (webcam requires an additional payment of $5)
FAQ
Additional Information
| Memory Capacity | 8GB, 4g |
|---|---|
| Screen Size | 23.8 |
| Hard Drive Capacity | 512GB, 256GB, 1TB |
